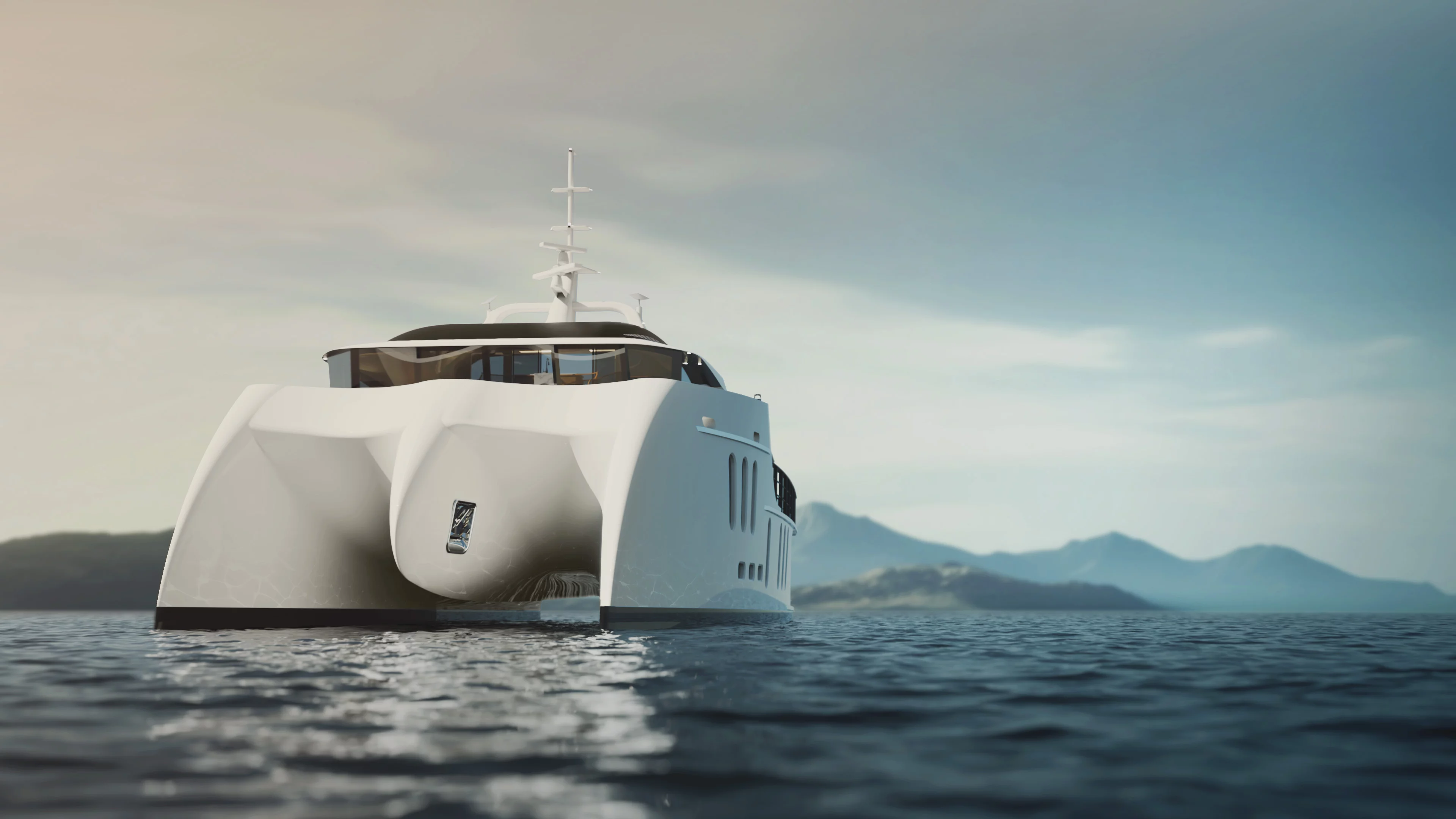

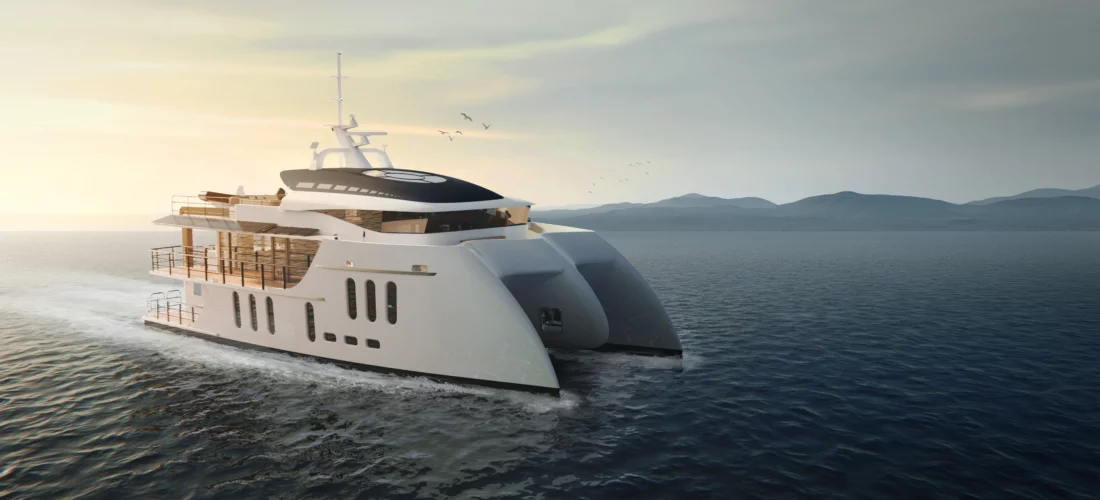

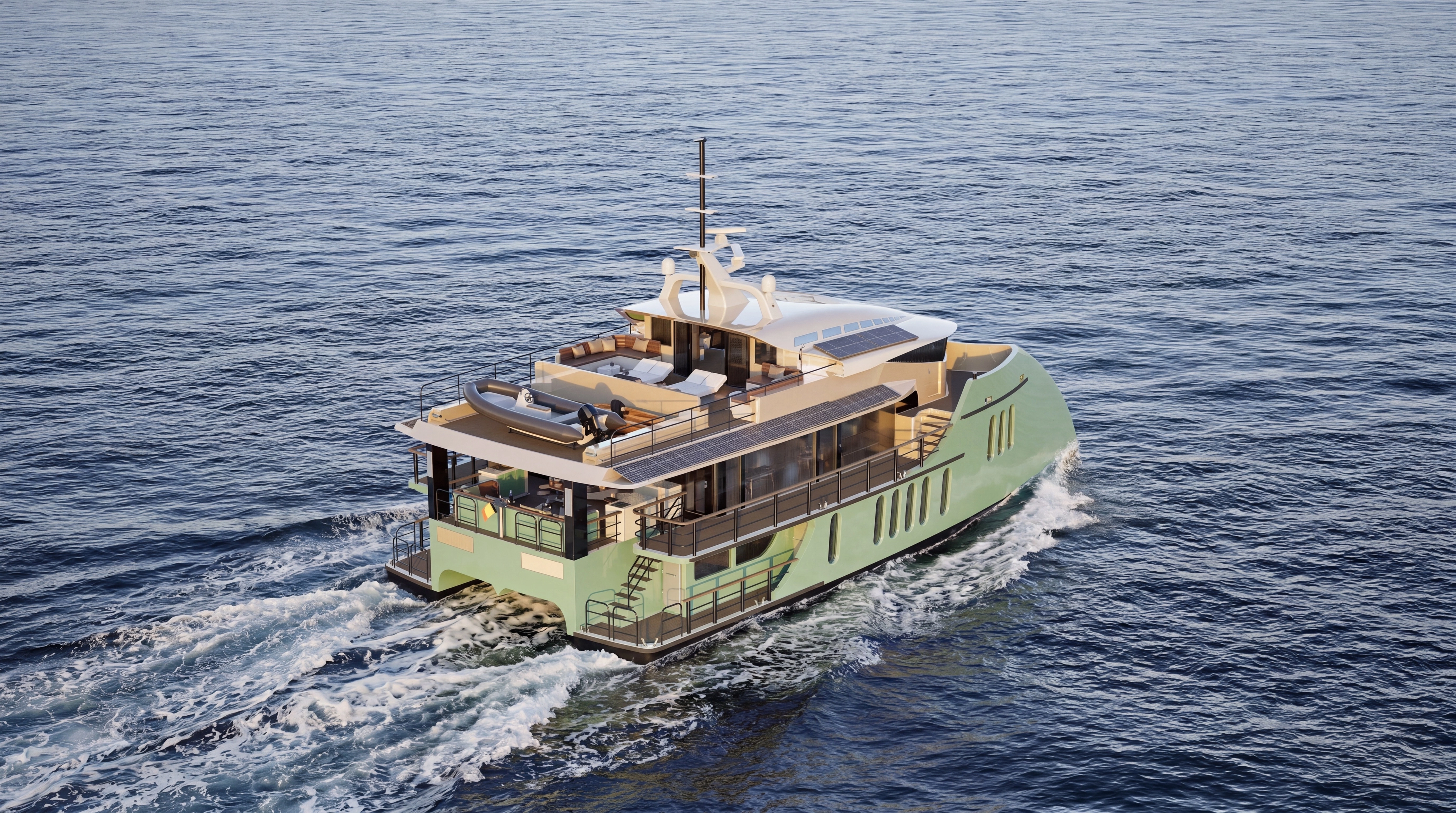

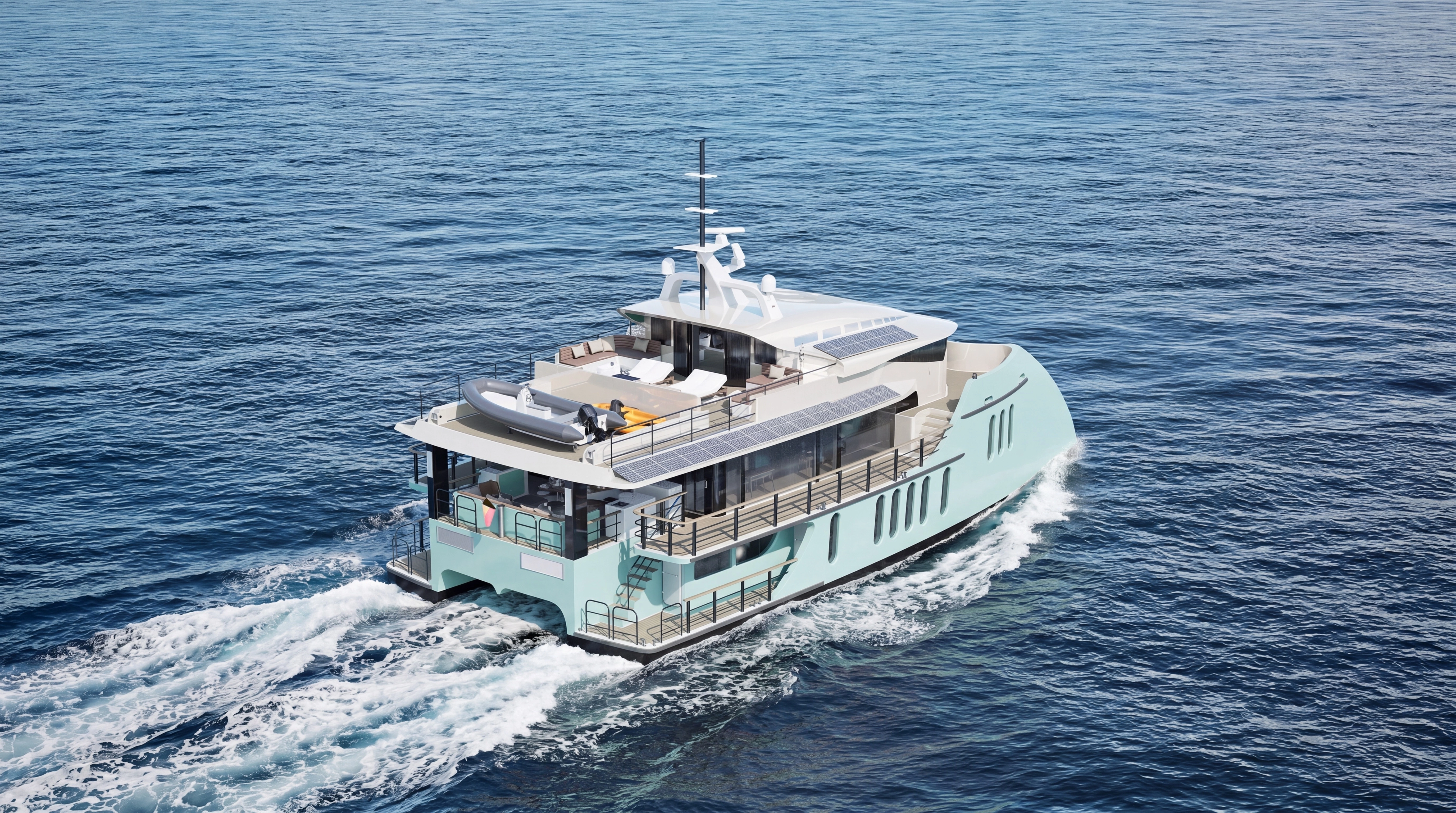

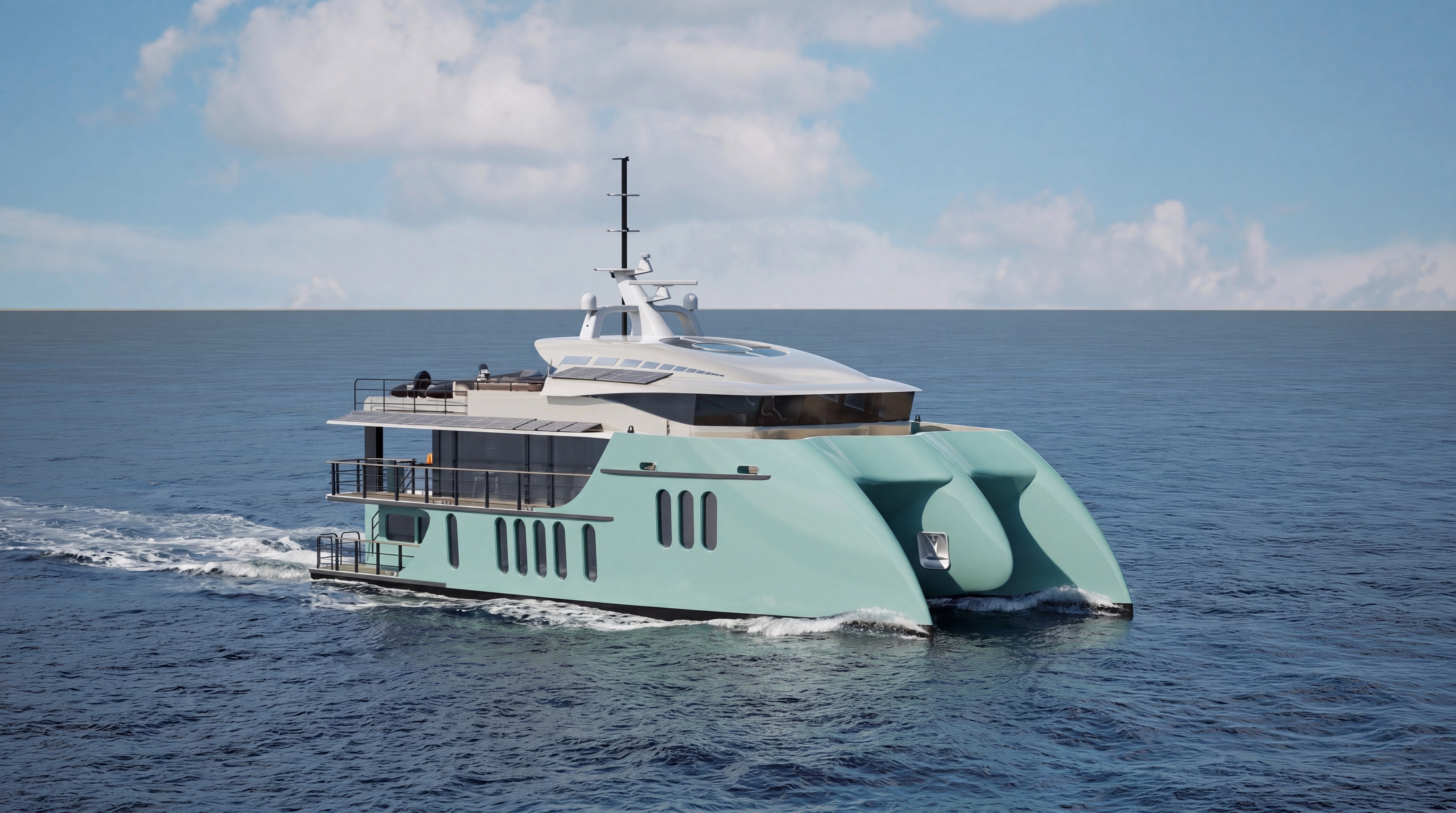

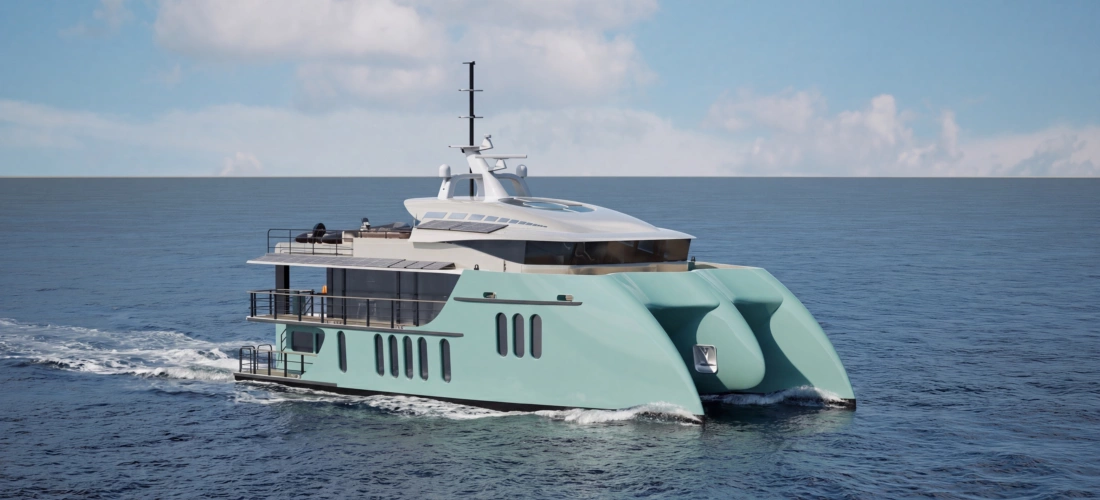

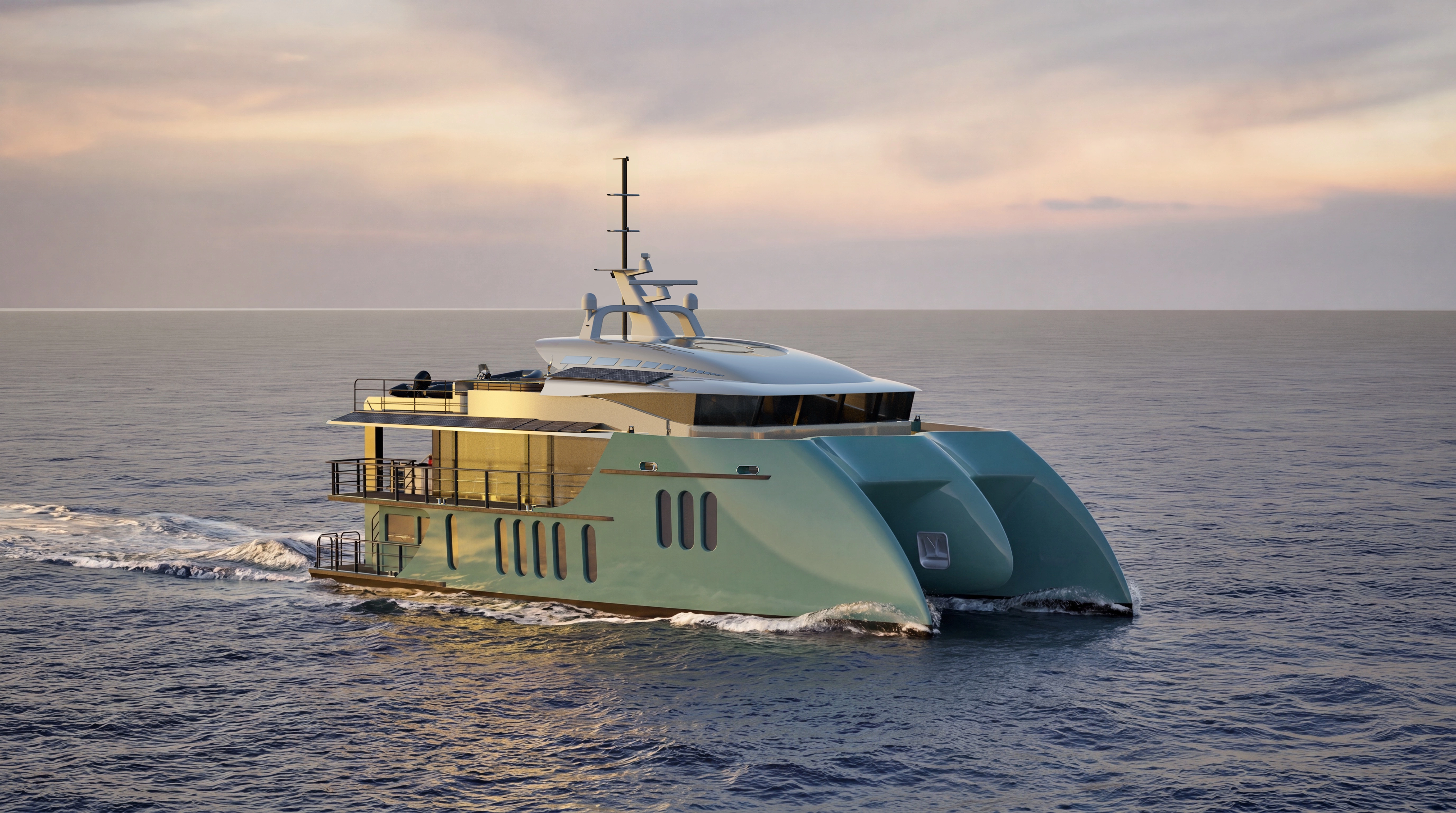

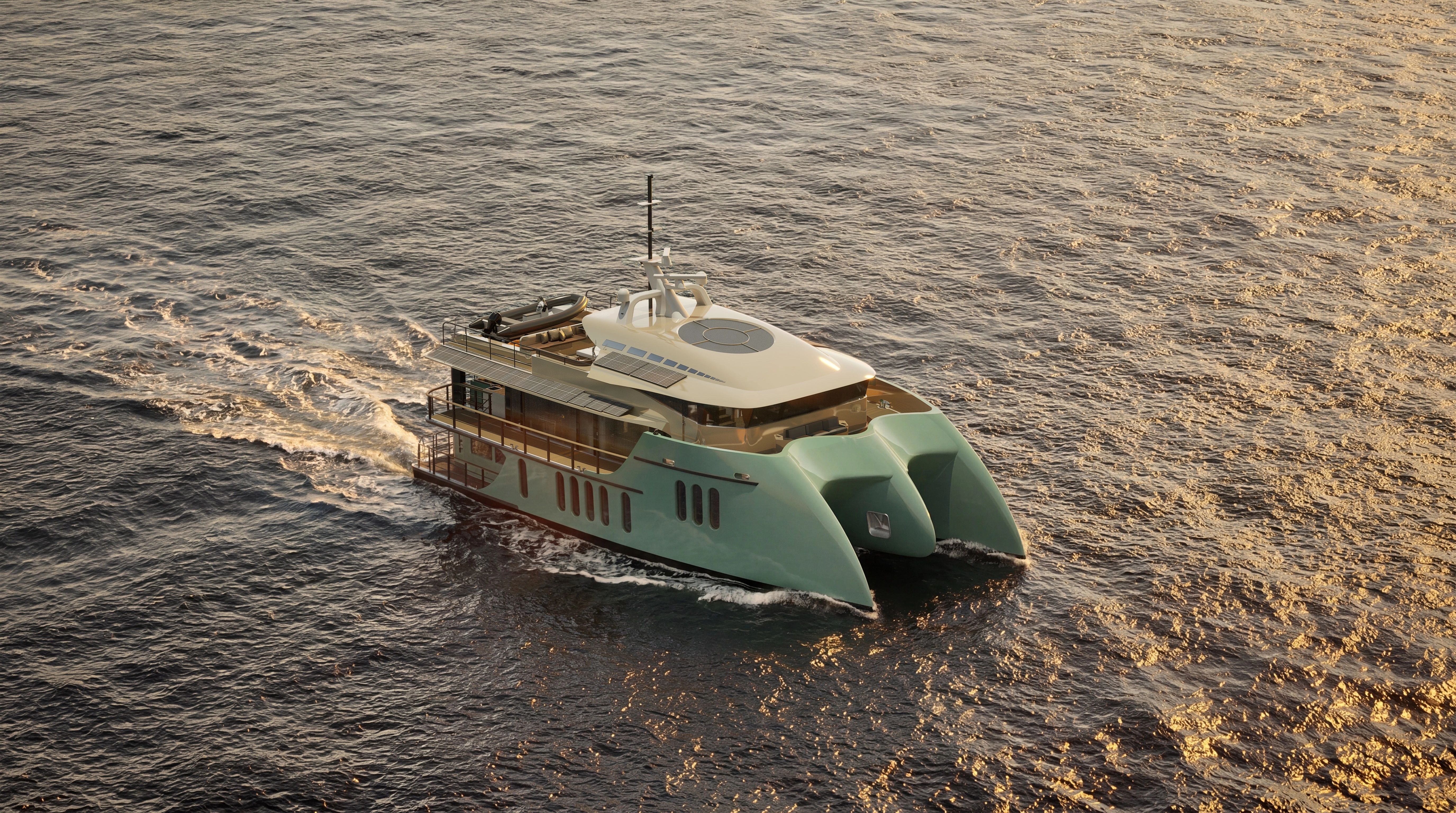

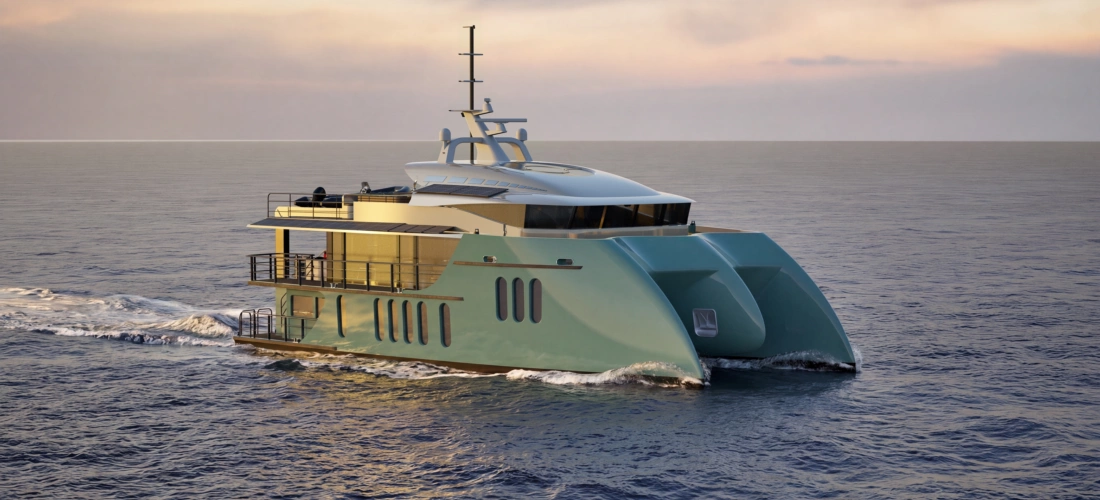

Deo Juvante C24.00
This 24-meter catamaran is designed by and for world explorers. The excellent hull, abundant redundancy, advanced systems, quality architecture and innovative propulsion provide a confident life on the water.
Cruise and
live on board
all over the world
When at sea, many factors come into play. The Deo Juvante C24.00 is designed with these in mind. The excellent hull ensures outstanding sea handling, both downwind and upwind. Abundant redundancy, advanced electric systems and solar power are incorporated, shaped by our hands-on experience and top-tier naval architecture. In addition, the yacht can be equipped with kite propulsion, harnessing the power of the wind, reducing RPMs and lowering fuel consumption.
Immerse yourself in the convincing highlights of this innovative explorer and find your home on the water.
01 Easy access to anchorages and marinas thanks to the 80 ft. or 24 m. length
02 Huge volume with over 200 GT, comparable to a 125 ft. or 38 m. monohull
03 Spacious master cabin, inviting VIP cabin with private access
04 Private access to crew cabin, without disturbing owners and guests
05 Sky window and floor to ceiling windows, providing light throughout the interior
06 State-of-the-art bridge
07 Extended swim platform, with private access to cabins, bathrooms and engine rooms
08 Tender launch system with hidden A-frame
09 Plenty of solar panel capacity
10 Innovative kite propulsion
11 Also ideal as charter vessel
- stable catamaran that is comparable to a 135' monohull
- dependable and comfortable
- spacious indoor and outdoor features
- 5 guest cabins + quarters for 4 crew members with private access
- no larger than 24 meters: not subject to safe manning rules for commercial yachts
- head-turning aesthetics
“Our yachts are built for ocean crossings and extended stays at anchor, with everything you need for a comfortable life on board without losing touch with the outside world. Communication is possible thanks to the latest technologies, which offers the chance to work remotely, homeschool children and enjoy a self-sufficient lifestyle.”
Thierry Verstraete
Lifestyle inspiring and conclusion servant
Licensed STCW Master 500 GT Unlimited
Specifications
01
Vessel type
Pleasure Catamaran Motor Yacht
02
Material
Composite
03
Hull Form
Displacement Catamaran
04
Principal dimension
Length overall: 23.9 m. or 80'
Length on Design Waterline: 23.9 m.
Beam: 11.5 m.
Draft: ~ 2.0 m. (nominal)
05
Crew
4
06
Passengers
8
Tankage
01
Fuel
2 x 20,000 litres nominal
02
Fresh water
1 x 5,000 litres nominal
03
Black water
2 x 500 litres nominal (stbd)
1 x 1,000 liters nominal (port)
Propulsion
01
Main Engines
2 x MAN D2676LE421 RCD 382 kW at 1800 rpm
02
Gear Box
2 x ZF 550-1 Ratio 3.042:1
03
Propulsion
2 x Propellers ~ 51 inches diameter
Electrical
01
Generator
3 x 35 kW, 50-60 Hz
02
Solar
25 m2 of solar paneling
Performance
01
Cruising Speed
11 Knots
02
Range
4,000 Nautical miles at 11 Knots with 10% reserve
GA - General Arrangements
Download the General Arrangements plan,
and explore the setup of the Deo Juvante C24.00.
